Product Description
Product Description

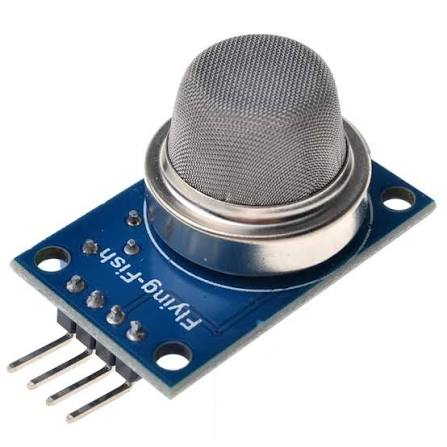

The MQ-5 Gas Sensor Module is a combustible gas detection module designed for sensing gases such as LPG, natural gas, methane, propane, and butane. The sensing element uses tin dioxide (SnO₂), which has relatively low conductivity in clean air and increases in conductivity when combustible gases are present.
As the concentration of combustible gas increases, the sensor output changes accordingly, allowing the module to provide both analog and digital output signals for use with microcontrollers, controllers, alarms, and monitoring systems.

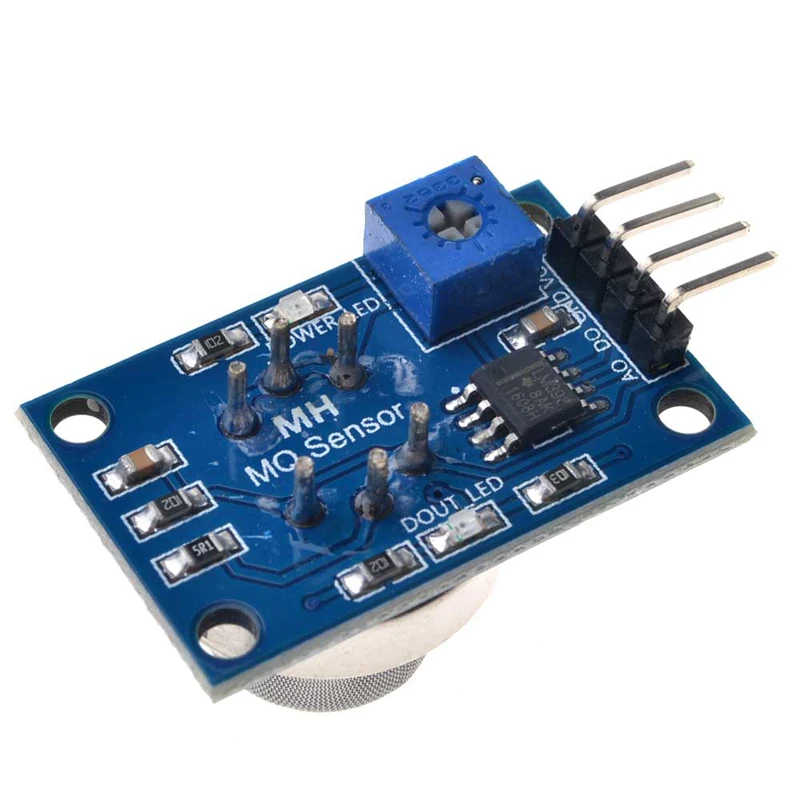

The module includes an onboard comparator circuit that provides a digital TTL output (DO) and an analog output (AO). The analog output voltage generally increases as the detected gas concentration increases, while the digital output can be used for threshold-based gas detection.
The MQ-5 module is suitable for home gas leakage alarms, industrial gas monitoring systems, LPG detection, natural gas monitoring, safety projects, Arduino projects, ESP32 applications, and educational electronics experiments.
Key Features
- MQ-5 combustible gas sensing element
- Uses tin dioxide (SnO₂) sensing technology
- High sensitivity to LPG, methane, propane, and butane
- Suitable for natural gas and combustible gas detection
- Provides analog output (AO)
- Provides digital TTL output (DO)
- Digital threshold detection capability
- Output signal changes according to gas concentration
- Fast response and recovery characteristics
- Long service life and reliable stability
- Onboard power indicator
- Digital output indicator LED
- Adjustable detection threshold
- Suitable for microcontroller and relay interfacing
- Compact PCB design
- Mounting holes for easy installation
- Suitable for home and industrial gas monitoring applications
Applications
- LPG leakage detection
- Natural gas detection
- Methane gas monitoring
- Propane detection systems
- Butane gas detection
- Domestic gas leakage alarms
- Kitchen gas safety systems
- Industrial gas monitoring
- Gas alarm systems
- Arduino projects
- ESP32 projects
- Microcontroller-based gas monitoring
- IoT gas detection systems
- Smart home safety systems
- Factory safety monitoring
- Laboratory experiments
- Educational electronics projects
- Automatic ventilation systems
- Gas concentration monitoring
- Embedded safety applications
Product Includes
- 1 × MQ-5 Gas Sensor Module
Product Disclaimer
- The MQ-5 gas sensor module is intended for general-purpose gas detection, educational projects, prototypes, alarm systems, and non-certified monitoring applications.
- Sensor readings may vary depending on temperature, humidity, gas type, airflow, calibration, operating time, and environmental conditions.
- The sensor requires an appropriate warm-up period before stable readings can be expected.
- Analog output values should not be treated as precise gas concentration measurements without proper calibration.
- The digital output threshold can vary depending on the onboard potentiometer adjustment.
- The module should not be used as the only safety device in applications where gas leakage may create serious fire, explosion, health, or life-safety risks.
- Always verify the module pin configuration and operating voltage before connecting it to a microcontroller.
- Product dimensions, PCB color, component placement, comparator IC, indicator LEDs, and other visual details may vary slightly depending on the manufacturer or production batch.
- Product images are for representation purposes only, and the actual product may differ slightly in appearance.
Key Features
- Suitable for electronics learning, prototyping and practical projects.
- Use with compatible hardware and documented connections.
- Supports careful testing before final project installation.
- Choose the correct power supply, accessories and software for the project.
Specification
Refer to the manufacturer datasheet, product markings and documented pinout for the final technical specifications, ratings and dimensions.
Application
- Student learning and laboratory exercises.
- Maker, hobby, automation and embedded-project prototypes.
- Testing compatible circuits, controllers and development platforms.
Product Includes
The package includes the item named in the product title. Cables, headers, power supplies and other accessories are included only when specifically listed in the product information.
Product Disclaimer
Use this product only within its documented electrical, mechanical and environmental limits. Confirm compatibility, polarity, wiring and safe power requirements before connecting it to any controller or power source.
